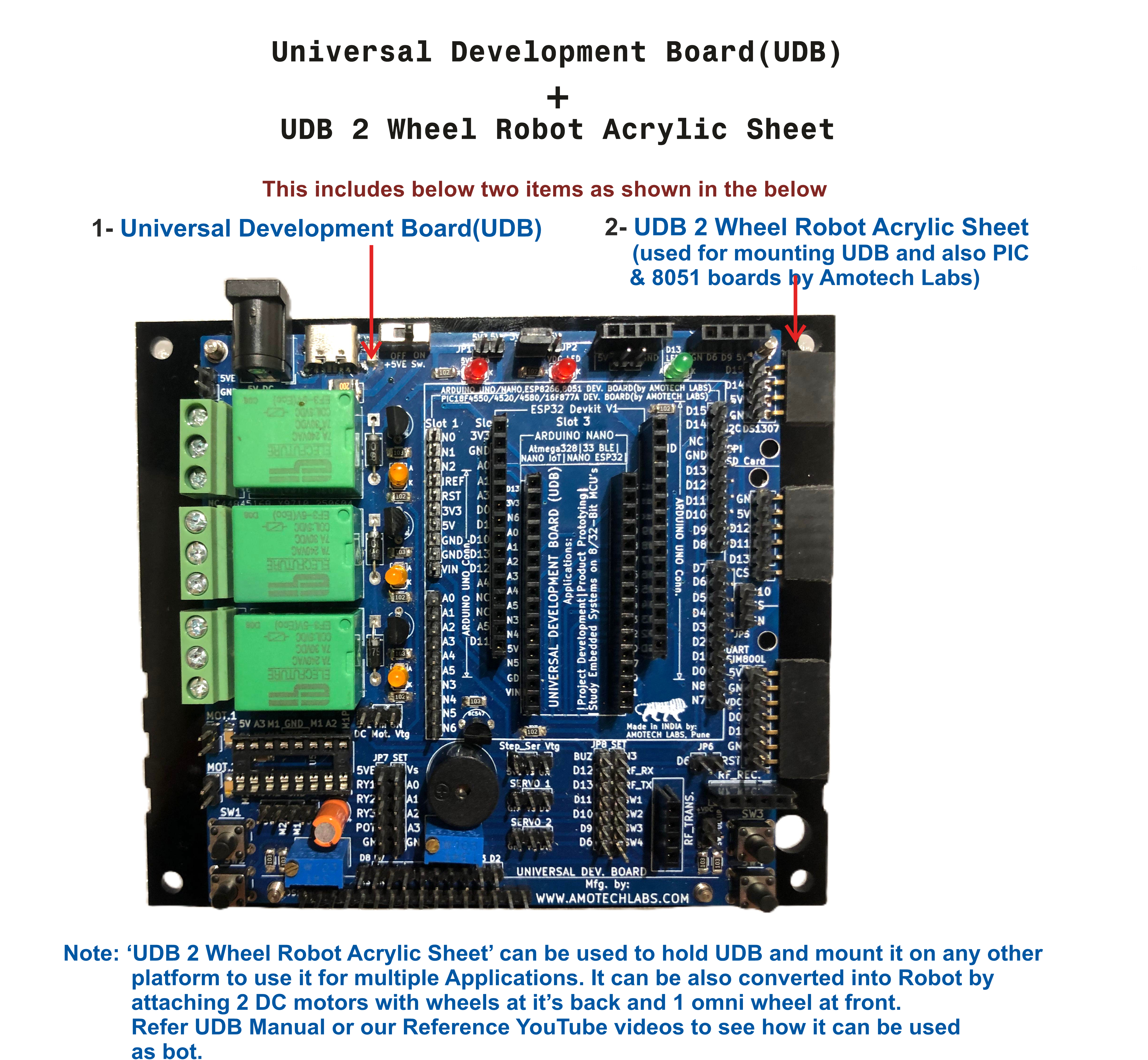

Universal Development Board(UDB)

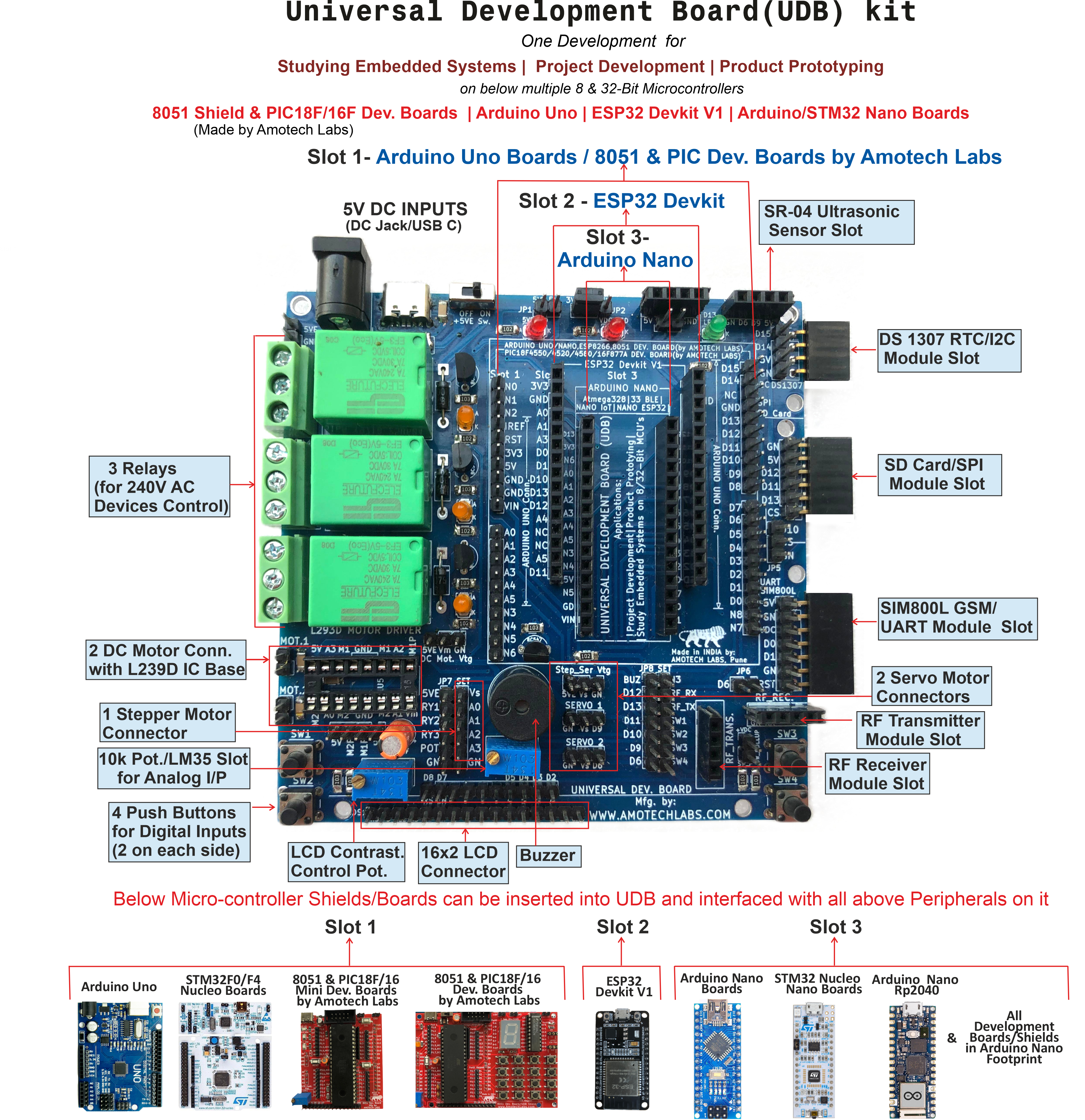

Universal Development Board Kit by Amotech Labs is a Single Development Board for multiple microcontrollers, including 8051, PIC18F/16F MCUs, ESP32, Arduino Nano, and STM32 series modules. It comes in a plastic box enclosure. It has the following on-board features which can be used with all the MCUs that can be attached to it:

1. LCD connector - It can be used to connect 16x2, 20x4 LCD Displays.

2. 4 Digital Input Buttons.

3. Relay(3 Units) which can be connected to  Digital Pins of attached MCU using the Jumper.

4. Port I/O pin connectors for the attached MCU

5. Provision to insert a 10k Potentiometer or an LM35 Temperature Sensor for Analog Input and has a Buzzer on-board.

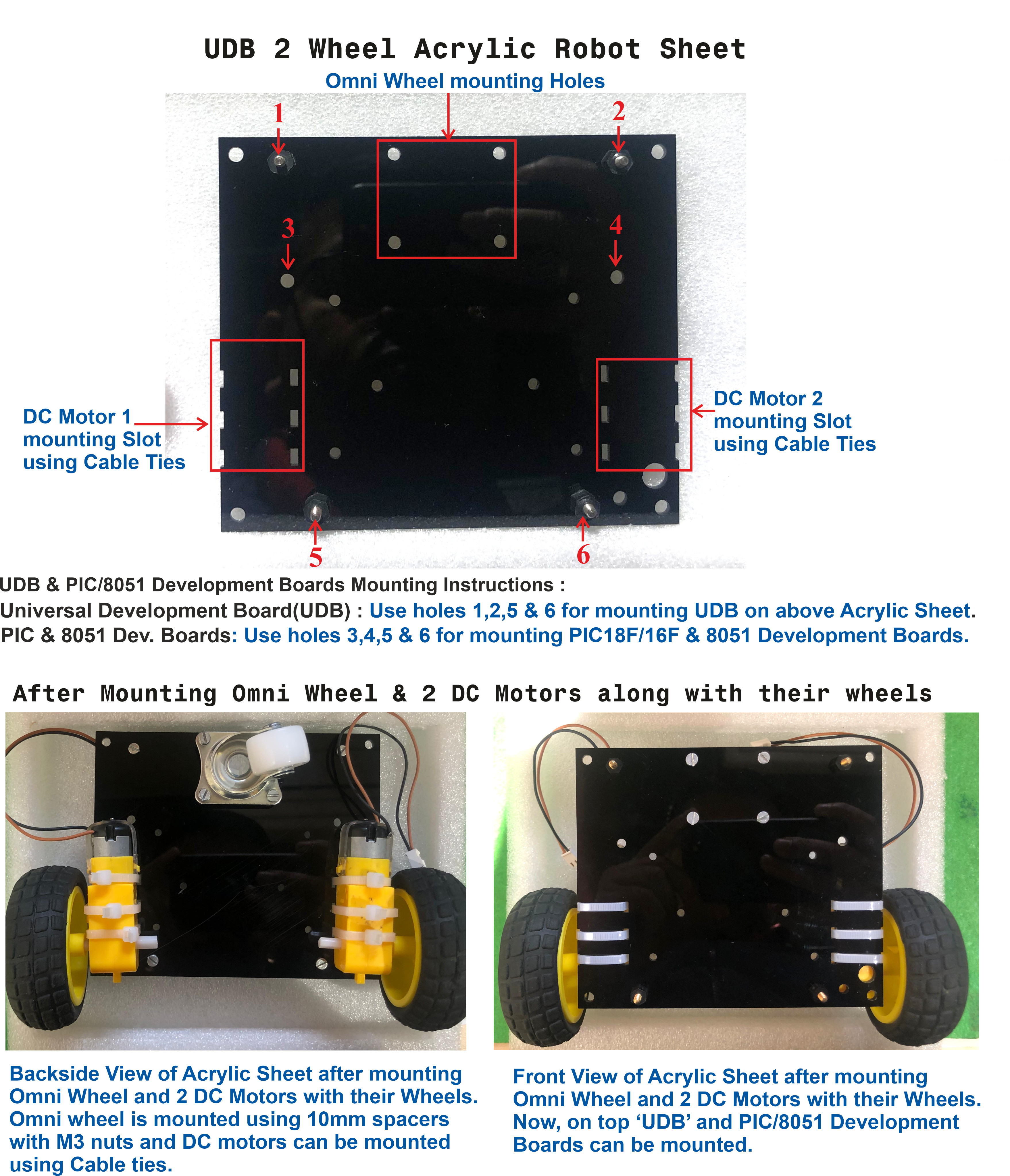

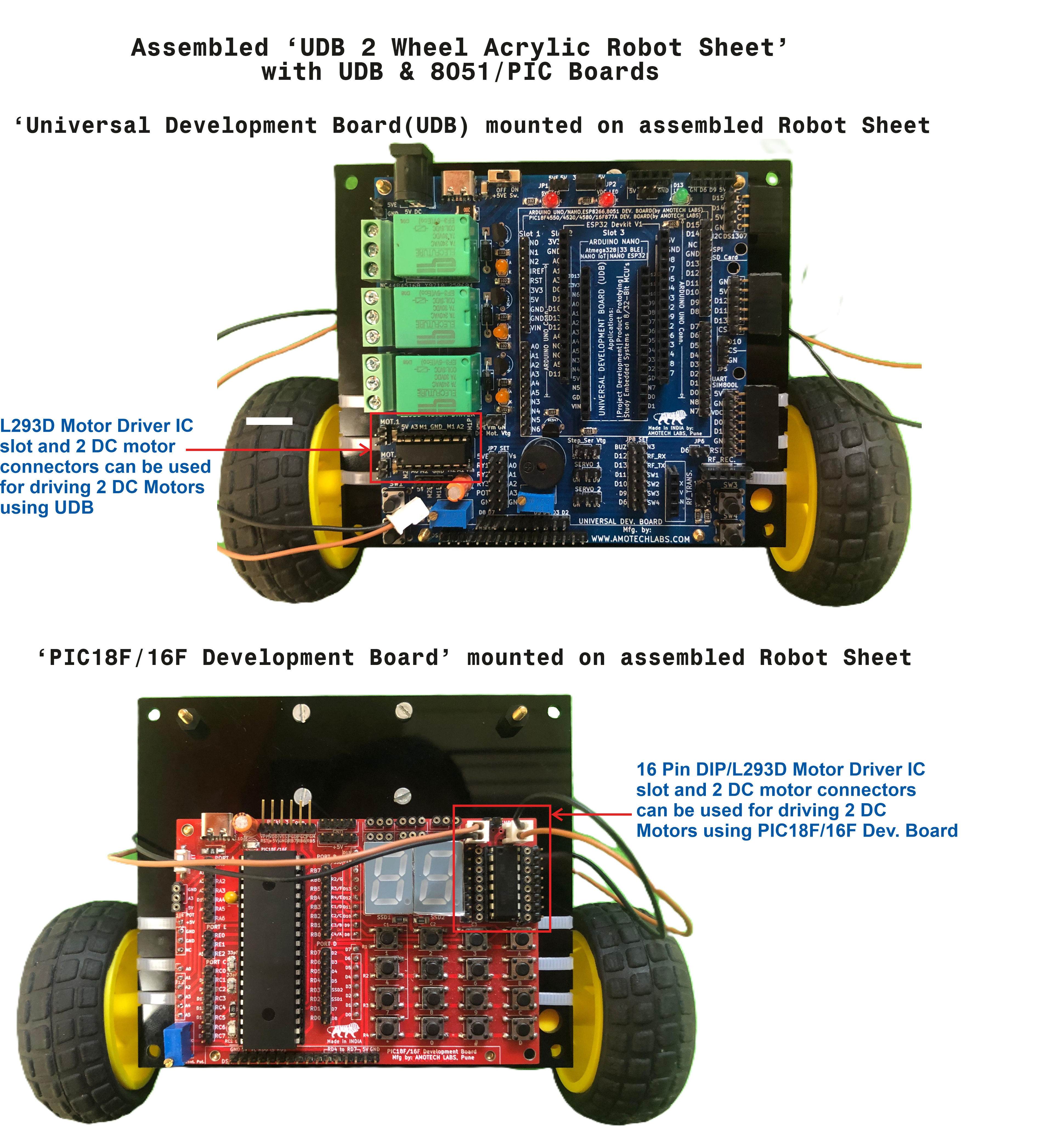

6. L293D Motor Driver IC slot along with connectors for 2 DC Motors. It can be used to make a Robot Car chassis.

8. 2 Servo Motor connectors and 1 Stepper Motor connector for using 2 Servo Motors and 1 Stepper Motor.

9. Slots for connecting DS1307 RTC module, SIM800L GSM Module, SD card, and RF Transmitter & Receiver with attached MCU for developing Real-Time clock, IoT, data logging, and Wireless RF Control Applications.

10. Slots for connecting the SR-04 Ultrasonic sensor and TJA1050 CAN Module to interface with the attached MCU module.

Applications:

1. Learn Embedded Systems hands-on using multiple Microcontrollers on a single kit.

2. Conduct microcontroller course lab practicals for multiple MCU courses on a single UDB kit.

3. Develop Academic Projects  and Robot Car chassis projects on multiple MCUs using UDB

4. Learning core professional embedded compilers like 'KEIL IDE', STMCubeIDE, and ESP-IDF using the respective MCU with UDB.

5.  Prototyping of professional Embedded Product development using a 'Universal Development Board'.
